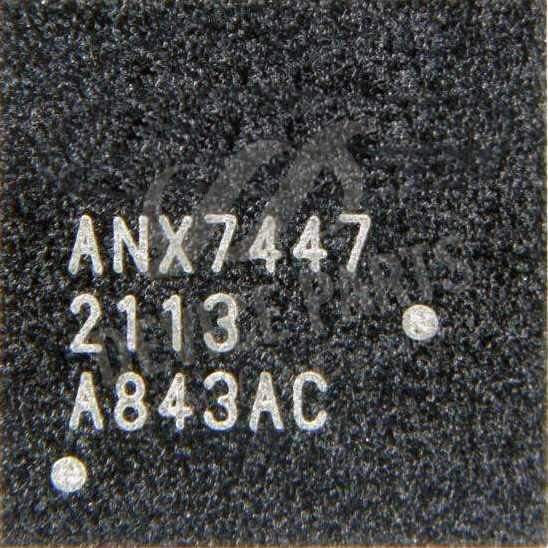

Analogix ANX7447/7411 USB Type-C drivers Version 1.9.2.6. - Analogix ANX7447 is an intelligent crosspoint switch that supports switching at data rates of up to 10Gbps. ANX7447 supports high- speed interfaces, such as USB 3.1 (Gen 1 — 5Gbps, Gen 2 — 10Gbps) and DisplayPort’” (DP) 1.4 at up to HBR3 (8.1Gbps). ANX7447 is designed as a companion IC to various CPUs and Application Processors (APs) to enable notebooks, desktops, and 2-in-1 PCs to use the reversible USB Type-C (USB-C") connectors.
An On-chip Microcontroller (OCM) is available to manage the signal switching, Channel Configuration (CC) detection, USB Power Delivery (USB-PD) charging and Vendor Defined Message (VDM) protocol, and other functions, as defined in the USB Type-C v1.2 and USB Power Delivery v3.0 specifications. ANX7447 can be configured for a Downstream Facing Port (DFP) or Dual-Role Port (DRP) to support a USB-C receptacle. In the DFP configuration, ANX7447 supports the DisplayPort Alternate Mode as defined by VESA* to carry high- definition audio and video (A/V) contents at 1, 2, or 4-lanes DP over the USB-C connector.
The ANX7447 can be adopted by Intel, AMD, Qualcomm, MTK platform designs.
Analogix ANX7447/7411 USB Type-C drivers Version 1.9.2.6
Date & Version: 04/23/2025,1.9.2.6
Pack Version: Drivers Only
WHQL: yes (28/04/25)
Officiel: no
OS: Windows 10/11 (64-bit)
Support: Analogix ANX7447/7411 USB Type-C
Code IDS:
ACPI\ANX7447
ACPI\ANX7411
